Image: MER Star Plot
No higher resolution available.

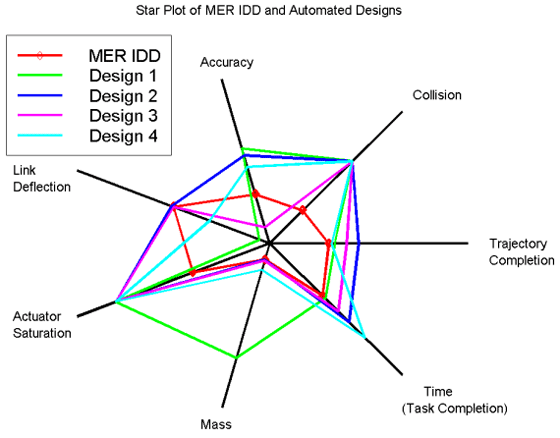

Description: Star plot In this star plot, the center represents the most desirable results. The red line represents the handcrafted MER IDD, and is used for comparison and validation of the approach. This graph illustrates the fact that improvements in one metric often come at the expense of others. However, design samples 3 and 4, which were among the last of the 10 actually produced, show the best overall results in the most important metrics.
