Image: Velocity selector
Size of this PNG preview of this SVG file: 524 × 372 pixels. Other resolution: 320 × 227 pixels.
Original image (SVG file, nominally 524 × 372 pixels, file size: 21 KB)

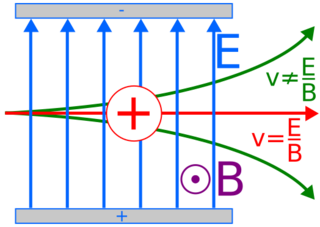

Description: Velocity selector in a mass spectrometer. The electric force is equal and opposite to the magnetic force only in the case where
v =
E B
{\displaystyle v={\frac {E}{B}}}
. Particles moving at all other velocities do not travel along a straight path.
