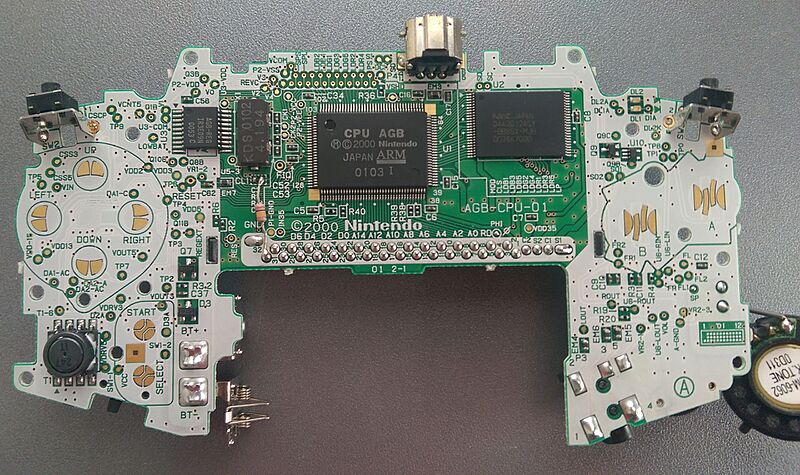

Image: Game Boy Advance motherboard front
Description: Game Boy Advance motherboard (front) AGB: AJ10005957 [gekkio] Color: Indigo Release code: AGB-JPN Assembly date: Week 6/2001 Mainboard type: AGB-CPU-01 Manufacture date: January/2001 Number pair on board: 2-1 Stamp on board: 061 1914 Circled letter(s) on board: A Parts:
(PCB ID — Part — Type — Manufacturer — Date — Label) U1 — CPU — CPU AGB — ? — Week 3/2001 — CPU AGB Ⓜ © 2000 Nintendo JAPAN ARM 0103 I U2 — WRAM — μPD442012AGY-BB85X-MJH — NEC — Week 38/2000 — NEC JAPAN D442012AGY-BB85X-MJH 0038K7020 U3 — LCD bias generator — IR3E09N — Sharp — Week 53/2000 — AGB-REG IR3E09N 0053 C U4 — ? — MM1514X — Mitsumi — 2000 — 081 514X U6 — Audio amplifier — IR3R60N — Sharp — Week 52/2000 — AMP AGB IR3R60N 0052 a X1 — Crystal — 4.194304 MHz — Daishinku — Week 2/2001 — KDS 0102 4.194
