Pantograph

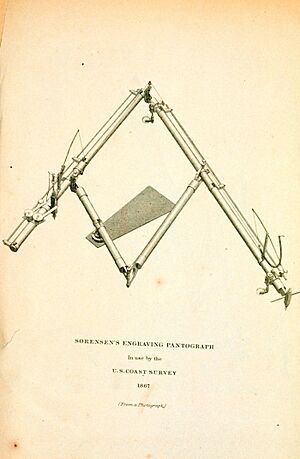

A pantograph
Pantograph in action
A pantograph being used to copy a drawing.
Pantograph animation
This animation shows how a pantograph can scale a picture. The red shape is traced and then enlarged.
Pantograph01
A 3D drawing of a pantograph.

A pantograph is a clever mechanical tool that can do two main things. First, it's a device used for copying drawings, making them bigger or smaller. Imagine tracing a picture with one pen, and another pen draws the exact same picture, but maybe twice the size! This is how artists, engineers, and even sculptors use pantographs to create copies.

Second, a pantograph also refers to a special kind of structure that can stretch out or fold up, like an accordion. This structure forms a cool diamond-like pattern. You might see this type of pantograph structure in things like wall mirrors that extend, temporary fences, or even the arms that collect power on electric trains and trams. The word "pantograph" comes from ancient Greek words meaning "all" and "to write," because it was first used to copy writing.

How a Copying Pantograph Works

A pantograph used for copying is made of several connected bars. These bars form a special shape called a parallelogram. Because of this shape, when you move one part of the pantograph, other parts move in a very specific way.

Tracing and Drawing

One end of the pantograph has a pointer that you use to trace an original drawing or object. Another end has a pen or pencil. As you trace, the pen moves in an identical way, drawing a copy. Depending on how the pantograph is set up, the copy can be the same size, much larger, or much smaller than the original.

Uses of Copying Pantographs

Pantographs were very important before computers and digital scanners existed. They were used for:

  • Copying drawings: Making exact duplicates of maps, blueprints, or illustrations.
  • Sculpture and carving: Scaling up or down models for statues or carvings.
  • Minting and engraving: Creating smaller versions of designs for coins or detailed engravings.
  • Milling: Guiding cutting tools to carve out shapes in metal or wood.

Pantograph Structures in Everyday Life

Besides the copying tool, the word "pantograph" also describes a type of structure that can expand and contract. This structure looks like a series of connected "X" shapes or diamonds.

Where You Can See Them

You might have seen pantograph structures in many places without even knowing their name!

  • Extending mirrors: Many wall-mounted mirrors in bathrooms can pull out and push back in using a pantograph arm.
  • Temporary fences: Some portable fences used at events or construction sites can fold up compactly and then stretch out.
  • Scissor lifts: These machines lift workers high into the air using a large pantograph mechanism that extends upwards.
  • Electric trains and trams: The arm on top of an electric train that connects to the overhead power lines is called a pantograph. It can move up and down to stay in contact with the wire.
