Radar jamming facts for kids

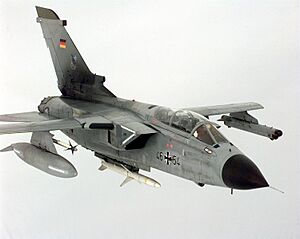

German Luftwaffe Tornado ECR aircraft. This fighter is good at electronic warfare.

Imagine trying to listen to your favorite song, but someone keeps playing loud static over it. That's a bit like what radar jamming does to a radar system! It's when special signals are sent out to mess with a radar's ability to see things. This can be done by sending out a lot of noise or by making the radar think it sees things that aren't really there.

There are two main ways to jam a radar: using physical objects (called mechanical jamming) or using electronic signals (called electronic jamming). Both methods aim to hide something or confuse the radar operator.

What is Radar Jamming?

Radar jamming is a trick used to stop a radar from working properly. Radars send out radio waves and listen for them to bounce back. This helps them find objects like airplanes or ships. Jamming tries to stop the radar from getting clear signals back.

Think of a radar as a flashlight in a dark room. It sends out light to see objects. Radar jamming is like someone shining another bright flashlight directly into your eyes. It makes it hard for you to see what the first flashlight is showing you.

How Does Radar Work?

To understand jamming, it helps to know how radar works. The word "radar" stands for RAdio Detection And Ranging. A radar sends out radio waves, which are a type of electromagnetic radiation. These waves travel very fast.

When these radio waves hit an object, they bounce off it and return to the radar's receiver. By measuring how long it takes for the waves to come back, the radar can figure out how far away the object is. It can also tell the object's direction and speed.

Why Do We Use Radar Jamming?

Radar jamming is mostly used in military situations. It helps to protect aircraft, ships, or ground forces from being detected by enemy radars. For example, a fighter jet might use jamming to hide from an enemy's air defense radar. This makes it harder for the enemy to target the jet with missiles.

Jamming can also be used to confuse the enemy. It might make them think there are more aircraft than there really are, or that aircraft are in different locations. This can make the enemy waste their resources or make wrong decisions.

Types of Radar Jamming

There are two main types of radar jamming: mechanical jamming and electronic jamming. Each type works in a different way to confuse or blind a radar.

Mechanical Jamming

Mechanical jamming uses physical objects to reflect or absorb radar signals. It doesn't use electronic signals directly. The most common form of mechanical jamming is called chaff.

• Chaff: Chaff is made of tiny, lightweight strips of metal or metallized glass fiber. These strips are cut to specific lengths that match the radar waves they want to jam. When released from an aircraft or missile, they spread out into a cloud. This cloud creates many false radar reflections, making it hard for the radar to see the real target. It's like throwing a handful of glitter into the air to hide a small object.

Another type of mechanical jamming involves using decoys. These are objects designed to look like real targets on radar. They can be towed behind an aircraft or launched as separate objects.

Electronic Jamming

Electronic jamming uses special electronic devices called jammers. These devices send out powerful radio signals that interfere with the radar's receiver. Electronic jamming can be more precise and flexible than mechanical jamming.

There are different ways electronic jammers work:

• Spot Jamming: This is when a jammer focuses all its power on a very narrow range of frequencies. It's like shining a very bright, focused light directly into someone's eyes. This can completely blind the radar on that specific frequency.
• Barrage Jamming: This type of jamming spreads its power over a wider range of frequencies. It's less powerful on any single frequency but can affect many different radars at once. This is like shining a less bright, but wider, light.
• Deception Jamming: This is a clever type of electronic jamming. Instead of just sending out noise, the jammer sends out false signals. It might make the radar think an aircraft is moving faster or slower than it is, or that it's in a different location. It can even create "ghost" targets that don't exist. This is like playing tricks on the radar's mind.

Electronic jammers can be carried on aircraft, ships, or even placed on the ground. They are a key part of modern electronic warfare.
