The draft (or draught) of a ship is how deep the bottom of the ship sits in the water. Imagine a line around the ship where the water meets its side – that's the waterline. The draft is measured from this waterline straight down to the lowest part of the ship's hull, like its propellers or keel.
The draft changes depending on how much cargo or weight a ship is carrying. A ship loaded with lots of goods will sink deeper into the water, meaning it has a greater draft. Knowing the draft is super important for sailors. It helps them make sure the ship can travel safely without hitting the bottom in shallow areas. They can figure out the draft by doing calculations or by looking at special marks painted on the ship's side.
Contents
What is a Ship's Draft?
A ship's draft tells you the maximum depth of any part of the vessel below the water. This includes parts like rudders or propellers that stick out.
Understanding Key Terms
- Air Draft: This is the opposite of draft. It's the total height of the ship from the waterline to its very highest point. This is important for passing under bridges.
- Under Keel Clearance: This is the space between the bottom of the ship and the seabed or riverbed. A ship's draft helps determine if there's enough clearance to navigate safely.
- Displacement: When a ship floats, it pushes aside a certain amount of water. This amount of water is called its displacement. The heavier a ship is (with more cargo), the more water it displaces, and the deeper its draft becomes. Shipbuilders create tables to show how much water a vessel displaces at different drafts.
- Trim: This describes if a ship is tilted forward or backward in the water. If the front (bow) is deeper than the back (stern), it's "trimmed by the bow." If the back is deeper, it's "trimmed by the stern."
How We Measure Draft
- Draft Aft: This is the measurement taken at the back of the ship, called the stern.
- Draft Forward: This is the measurement taken at the front of the ship, called the bow.
- Mean Draft: This is usually the average of the forward and aft drafts. It gives a general idea of the ship's overall depth in the water.
Sailors on the bridge of a commercial ship usually know the maximum draft. This is often the aft draft, and they share this information with the maritime pilot who guides the ship.
What Makes Draft Change?
Many things can change a ship's draft, not just how much cargo it carries:
- Trim: If a ship is tilted forward or backward, its draft will be different at the bow and stern.
- List: If a ship tilts sideways, called a list, the draft will be different on each side.
- Water Density: Saltwater is denser than freshwater. A ship will float higher (have less draft) in saltwater than in freshwater with the same load.
- Shallow Water Effect (Squat): When a ship moves quickly in shallow water, it can sink a little deeper. This is called squat. It reduces the space between the ship's bottom and the seabed.
- Movable Parts: Some boats have parts like centerboards or rudders that can be moved up or down. When these are lowered, they increase the draft.
- Fixed Parts: Even fixed parts like propellers or thrusters that stick out below the hull contribute to the ship's overall draft.
Reading Draft Marks

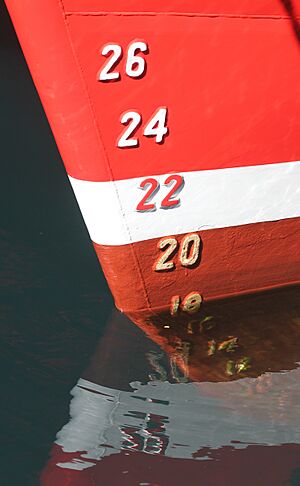

Ships have special markings and numbers painted on both sides of their hull. You can find them near the bow, stern, and sometimes in the middle of the ship. These are called draft marks.
Each number and mark shows the distance from that point down to the very bottom of the ship. For example, on some ships, the numbers are 6 inches tall. The bottom of each number indicates the draft in feet. In countries using the metric system, the bottom of each mark shows the draft in decimeters (10 centimeters).
Larger ships also use an internal draft gauge or draft indicator. This is a device inside the ship that uses water pressure to show the ship's draft.
Why Draft Matters
Understanding draft is crucial for safe and efficient shipping around the world.
Big Ships and Their Draft
Large ships need to keep their propellers fully underwater, even when they are empty. They often use ballast tanks, which are special tanks filled with water, to add weight and keep the ship stable. This helps prevent the ship from rolling too much in rough seas.
When a large ship moves in shallow water, the squat can make it sink deeper. Also, when a big ship turns, it can tilt to one side, which temporarily increases its draft on that side. Sailors must always consider these effects to avoid hitting the bottom.
Draft is a major factor that limits where large ships can travel. Many coastal areas, reefs, and important shipping lanes are too shallow for very deep ships.
- Canals: Famous canals like the Panama Canal and the Suez Canal have specific draft limits. Ships designed to fit through the Panama Canal are called Panamax ships. They have limits on their width and length, but also on their draft. Suezmax ships, designed for the Suez Canal, are mainly limited by their draft. Some huge oil tankers can only pass through the Suez Canal if they are empty or partly loaded.
- Straits: The Strait of Malacca, a very busy shipping route, is also quite shallow. Ships designed to pass through it are called Malaccamax ships. Even larger ships, like Capesize vessels or Ultra Large Crude Carriers, are too deep when fully loaded for either the Strait of Malacca or the Suez Canal.
Small Boats and Submarines
- Pleasure Boats: A small draft is great for pleasure boats. It lets them go into shallow waters, visit smaller ports, travel on rivers, and even pull right up onto a beach. Boats with a larger draft might be more stable in certain conditions.
- Submarines: For submarines, a term called keel depth is used. This measures the distance from the water surface to the bottom of the submarine's keel when it is underwater. It helps them navigate safely, avoid obstacles, and stay clear of the ocean floor. Submarines also have a regular draft measurement when they are on the surface, just like other ships.
