Tsar Bomba facts for kids
Quick facts for kids Tsar Bomba |
|
|---|---|
Ground-level view of detonation (source: Rosatom State Corporation Communications Department: Rosatom: 20–08–2020 public release)
|
|
| Type | Thermonuclear |
| Place of origin | Soviet Union |
| Production history | |
| Designer |
|
| No. built | 1 operational (2 "prototypes") |
| Specifications | |
| Mass | 27,000 kg (60,000 lb) |
| Length | 8 m (26 ft) |
| Diameter | 2.1 m (6 ft 11 in) |
|
|
|
|
Detonation
mechanism |
Barometric sensor |
| Blast yield | 50–58 megatons of TNT (210–240 PJ) |
The Tsar Bomba (also known as Ivan or AN602) was the most powerful nuclear weapon ever built and tested. This huge thermonuclear aerial bomb was a project of the Soviet Union. It was tested on October 30, 1961, in the far northern Novaya Zemlya area. The bomb's explosion was as powerful as 50 megatons of TNT.
Soviet physicist Andrei Sakharov led the project. Other key designers included Viktor Adamsky, Yuri Babayev, Yuri Smirnov, and Yuri Trutnev. Nikita Khrushchev, the leader of the Soviet Union, ordered the project in July 1961. This test was part of the Soviet Union restarting its nuclear testing program after a period when tests were paused.
The test on October 30, 1961, showed new ways to build very powerful bombs. The Tsar Bomba was dropped by parachute from a special Tu-95V airplane. It exploded automatically about 4,000 meters (13,000 feet) above Novaya Zemlya. Another plane, a Soviet Tu-16, recorded information and video of the blast. Both planes were damaged by the intense flash of radiation.
At first, experts thought the bomb's power was about 58 megatons. But in 1991, Soviet scientists shared their own measurements, showing it was 50 megatons. This number is now widely accepted. The bomb could have been twice as powerful, over 100 megatons! This would have happened if it used a special uranium part, but this part was replaced with lead to reduce dangerous radioactive fallout. Only one Tsar Bomba was ever fully built. It was too big and heavy to be used in actual warfare. However, its design helped in creating the powerful Proton rocket.
The United States government said the bomb wasn't useful for military purposes. This event also encouraged the signing of the Partial Nuclear Test Ban Treaty in 1963, which aimed to stop nuclear tests in the atmosphere. People in the West worried about a lot of radioactive fallout, like from an earlier US test called Castle Bravo. However, the Tsar Bomba was designed to create very little fallout, with only about 3% of its power coming from processes that create radiation.
Contents
What's in a Name?
The name Tsar Bomba is a newer name, first used in the 1990s. At the time, people in Western countries called it the "50-megaton bomb" or "100-megaton bomb."
The bomb was officially known as "product 602" or "AN602," and its secret code name was "Ivan." Sometimes, people mistakenly called it by other names like RDS-202 or RN202.
Unofficially, it also became known as "Kuzka's mother." This name came from a statement by Soviet leader Nikita Khrushchev to US Vice President Richard Nixon. Khrushchev said, "We will show you Kuzka's mother!" meaning they had something very impressive to show.
The name Tsar Bomba (meaning Emperor of Bombs) refers to other huge Russian historical items. These include the Tsar Cannon and the Tsar Bell. Both were made to be impressive showpieces, but their massive size made them impractical to use.
Why Was it Built?
During the Cold War in the late 1950s, the United States had many more nuclear weapons than the Soviet Union. The US also had better ways to deliver these weapons. The Soviet Union wanted to show its strength. Its leaders knew their nuclear forces in 1960 could not easily reach targets in the United States. This made them feel less powerful in important global discussions.
Because of this difference in nuclear power, Soviet leaders like Nikita Khrushchev felt they needed to respond. They wanted to show the world and their own people that the Soviet Union had a powerful nuclear program. The Tsar Bomba was built to help with this idea of nuclear deterrence. This meant having such powerful weapons that no country would dare attack them, even if the bomb itself wasn't practical for actual war.
How the Tsar Bomba Was Developed
Work on a very large bomb started in 1956. It happened in two main steps. First, from 1956 to 1958, scientists worked on "product 202" at a place called NII-1011. Then, from 1960 until the successful test in 1961, the bomb was known as "item 602." This part of the project was done at KB-11, with Andrei Sakharov and his team leading the design.
After another powerful bomb, the RDS-37, was tested, scientists like Sakharov started thinking about even bigger bombs. In 1956, they considered designs that could reach 150 megatons or even more. A new research center, NII-1011, was given the job of creating a super-powerful bomb, called "Project 202."
In 1956, Soviet leaders approved plans for "Project 202." This bomb was meant to be very powerful, up to 50 megatons. It was designed to fit a special Tu-95 airplane. However, after other tests, the plans for testing this specific device were canceled.
The Tsar Bomba was a "three-stage" bomb. This means it used a smaller explosion to trigger a bigger one, and then that bigger explosion triggered an even larger one. This design allowed it to reach its massive 50-megaton power. This power was about 1,570 times stronger than the bombs that destroyed Hiroshima and Nagasaki combined. It was also 10 times the total energy of all regular explosives used in World War II.
In 1960, work began on a new thermonuclear device, aiming for 100 megatons. In July 1961, Nikita Khrushchev supported building and testing this super-powerful bomb.

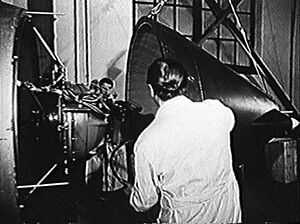

The Tsar Bomba was based on the earlier Project 202 but was a new design. It used a "three-stage" process. The first stage was a small nuclear trigger. The second stage involved two smaller thermonuclear charges. These charges helped to start the main thermonuclear reaction in the third stage, which created 50 megatons of explosion energy.
The original plan for a 100-megaton bomb was changed. Scientists decided against it because it would have caused an extremely high level of radioactive contamination. Instead, they replaced a uranium part with lead. This change reduced the bomb's power to 50 megatons. It also greatly reduced the amount of dangerous radioactive fallout. This design choice also helped prevent the fireball from touching the ground, which would have spread even more radioactive material.
Preparing the Carrier Aircraft
The first design of the Tsar Bomba could have created an explosion of about 100 megatons. This would have been about 3,000 times more powerful than the bombs dropped on Hiroshima and Nagasaki combined. However, this would have created too much nuclear fallout. Also, the plane dropping the bomb might not have had enough time to escape the explosion.
To reduce the fallout, a uranium part in the bomb was replaced with lead. This meant that about 97% of the total explosion came from thermonuclear fusion. This kind of reaction creates much less radioactive material. Because of this, the Tsar Bomba was one of the "cleanest" nuclear bombs ever tested, meaning it produced less radioactive fallout. This was important because much of the fallout from a test would have landed on Soviet land.
Studies for carrying such a large bomb began in 1954. The Tupolev Tu-95 bomber, which would carry the Tsar Bomba, needed major changes. Its engines, bomb bay, and release systems had to be redesigned. The bomb was very heavy, making up 15% of the plane's weight. The plane's bomb bay doors were removed, and a new, stronger holder was installed. The system for releasing the bomb was also made very precise for safety.
In 1956, a Tu-95 bomber was converted into the Tu-95V to carry the bomb. This plane was used for flight tests, including dropping a dummy bomb, and everything worked well.
The test of the Tsar Bomba was delayed for political reasons, including a pause in the Cold War. The Tu-95V was used for training during this time. When the Cold War tensions rose again in 1961, the test plans were restarted. The Tu-95V was updated, its bomb bay doors were removed, and it was painted with a special, reflective white paint to protect it from the heat of the explosion.
The Test
| Novaya Zemlya | |
|---|---|
Novaya Zemlya was the site of the world's largest nuclear explosion, the 50 Mt Tsar Bomba
|
|
| Coordinates | 73°48′26″N 54°58′54″E / 73.80722°N 54.98167°E |
| Type | Nuclear test site |
| Area | land: 55,200 km2 (21,300 sq mi) water: 36,000 km2 (14,000 sq mi) |
| Site information | |
| Operator | Russian Federation (formerly Soviet Union) |
| Status | Active |
| Site history | |
| In use | 1955–present |
| Test information | |
| Subcritical tests | not known |
| Nuclear tests | 224 |
Nikita Khrushchev announced the upcoming test of a 50-megaton bomb on October 17, 1961. The Tsar Bomba was tested on October 30, 1961.
The Tupolev Tu-95V aircraft, carrying the bomb, took off from the Olenya airfield. It flew to the test site on Novaya Zemlya with a crew of nine, led by Major Andrei Yegorovich Durnovtsev.
Another plane, a Tupolev Tu-16 laboratory aircraft, also took part. It was equipped to monitor the tests. Both aircraft were painted with special reflective paint to protect them from the intense heat. Despite this, the crew of the Tu-95V were told they had only a 50% chance of surviving the test.

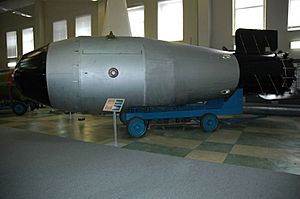

The bomb weighed 27 tons and was huge: 8 meters (26 feet) long and 2.1 meters (6.9 feet) in diameter. It was attached to an 800 kg (1,800 lb) parachute, which was 1,600 square meters (17,000 sq ft) wide. This parachute slowed the bomb's fall, giving the release and observer planes time to fly about 45 km (28 miles) away. This gave them a 50% chance of survival.
The bomb was released from a height of 10,500 meters (34,400 feet). The Tsar Bomba exploded at 11:32 AM Moscow Time on October 30, 1961. It detonated at a height of 4,200 meters (13,800 feet) above the target. By this time, the Tu-95V was 39 km (24 miles) away, and the Tu-16 was 53.5 km (33.2 miles) away.
When the explosion happened, the powerful shock wave caught up with the Tu-95V at 115 km (71 miles) and the Tu-16 at 205 km (127 miles). The shock wave briefly increased the Tu-16's speed and caused it to drop 800 meters (2,600 feet) in the air. However, both aircraft managed to recover and land safely. Both planes had their frames blackened by the radiation where they were exposed to the blast.
Even though calculations predicted the fireball would be large enough to hit the ground, the bomb's own shock wave pushed back and prevented this. The 8 km (5 mile) wide fireball reached almost as high as the plane that dropped it. It was visible from nearly 1,000 km (620 miles) away. The mushroom cloud rose to about 67 km (42 miles) high, which is almost eight times the height of Mount Everest. The base of the cloud was 40 km (25 miles) wide.
Test Results and Impact
The Tsar Bomba explosion was an ultra-high-power airburst.
- The bright flash of the explosion was visible from over 1,000 km (620 miles) away. People in Norway, Greenland, and Alaska saw it.
- The mushroom cloud reached a height of 67 km (42 miles). Its top part was about 95 km (59 miles) wide, and the lower part was 70 km (43 miles) wide. The cloud could be seen 800 km (500 miles) from the explosion site.
- The blast wave traveled around the Earth three times. The first trip took 36 hours and 27 minutes.
- A seismic wave, like an earthquake, also circled the globe three times.
- Glass windows shattered in a village 780 km (480 miles) from the explosion.
- The sound wave reached Dikson Island, but there were no reports of damage to buildings there.
- Radio communications were interrupted for about 40 minutes, hundreds of kilometers from the test site.
- The area near the explosion's center had very low radioactive contamination. It was safe for testers to visit just two hours later.
- All buildings in the village of Severny, 55 km (34 miles) from the explosion, were destroyed. In areas hundreds of kilometers away, wooden houses were destroyed, and stone houses lost their roofs, windows, and doors.
- The heat from the explosion could have caused severe burns 100 km (62 miles) away.
- The shock wave broke windows in Norway and Finland, even further away.
Global Reactions
Immediately after the test, several United States politicians criticized the Soviet Union. The Prime Minister of Sweden, Tage Erlander, saw it as a direct response to his appeal to stop nuclear testing. Leaders from Britain, Norway, and Denmark also condemned the blast. Soviet and Chinese radio stations mentioned a much smaller US underground nuclear test that happened the day before, but they did not mention the Tsar Bomba test.
Lasting Consequences
The creation and testing of this super-bomb were very important politically. The Soviet Union showed it could build extremely powerful nuclear weapons. At that time, the most powerful US thermonuclear test, Castle Bravo, was 15 megatons. After the Tsar Bomba test, the United States did not increase the power of its own thermonuclear tests. In 1963, the Partial Nuclear Test Ban Treaty was signed in Moscow. This treaty banned nuclear weapon tests in the atmosphere, outer space, and underwater.
The test also proved that there was no real limit to how powerful a thermonuclear bomb could be. Scientists had thought about this possibility since 1949.
The bomb's power could have been even higher, by another 50 megatons, if a uranium part had been used instead of lead. But this change was made on purpose to reduce radioactive fallout to a safe level.
The explosion was one of the "cleanest" in the history of atmospheric nuclear tests for its power. This is because over 97% of the explosion's power came from a fusion reaction, which creates much less radioactive contamination.
In 2015, an expedition to Novaya Zemlya found that some glaciers had 65–130 times more radioactivity than nearby areas. This was due to nuclear testing, including the Tsar Bomba.
Andrei Sakharov became a strong voice against the spread of nuclear weapons. He played a key role in the 1963 Partial Test Ban Treaty. Sakharov later became a supporter of civil liberties and reforms in the Soviet Union. He won the Nobel Peace Prize in 1975 for his work.
