Wright Glider facts for kids

Quick facts for kids Wright Gliders

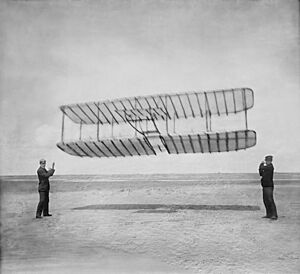

Wilbur (left) and Orville flying their 1901 glider as a kite
General information
Type	Experimental glider
National origin	United States
Designer	Orville and Wilbur Wright
Number built	1 kite, 4 gliders
History
Developed into	Wright Flyer

The Wright Gliders were a series of experimental aircraft built by two American brothers, Orville and Wilbur Wright. Between 1899 and 1902, the brothers designed and tested a test kite and three full-sized gliders. These early machines did not have motors. Instead, they relied on natural wind and gravity to fly down sandy hills.

By testing these gliders, the Wright brothers solved the basic problems of balance, steering, and wing shape. Their hands-on scientific research paved the way for their famous powered airplane, the 1903 Wright Flyer. In 1911, Orville returned to the sand dunes with a modern soaring glider to set a world duration record. Today, these early gliders are remembered as the crucial stepping stones that made modern aviation possible.

Early Experiments and the 1899 Test Kite

Why Did the Wright Brothers Build Gliders First?

Before building a machine with an engine, the Wright brothers knew they needed to master the art of flight control. Other early flight pioneers had tried to build powered machines first, but many crashed because they could not steer them.

Wilbur and Orville realized that an airplane needed to move in three directions: roll (tilting wings left or right), pitch (pointing the nose up or down), and yaw (turning left or right). They decided to test their ideas on unpowered gliders before risking an engine.

Testing Wing-Warping on a Small Scale

In the summer of 1899, Wilbur built a biplane test kite made of pine wood, cloth, and shellac. The kite had a wingspan of only 5 feet (1.5 meters). It was too small to carry a person, but it was strong enough to test a new steering concept called wing-warping.

Wing-warping meant twisting the flexible tips of the wings using handheld control cords:

• When one wingtip twisted downward, it caught more air and produced more lift, rising upward.
• The opposite wingtip twisted upward, producing less lift and dropping downward.
• This imbalance made the entire kite roll and bank, much like a bird changing direction in the sky.

Wilbur flew the kite in Dayton, Ohio, while neighborhood children watched. The test was a complete success and proved that twisting the wings allowed a pilot to control roll. After gathering their scientific notes, the brothers discarded the kite parts in 1905.

The 1900 Glider: First Human Flights

Designing the First Full-Sized Machine

In 1900, the Wright brothers designed their very first aircraft capable of carrying a pilot. They based their overall structural framework on biplane glider designs created by Octave Chanute. For wing shape, they used lift tables published by the German aviation pioneer Otto Lilienthal.

The 1900 glider had unique design choices:

• The wingspan was 17.5 feet (5.3 meters), and the entire craft weighed only 52 pounds (23.6 kilograms).
• The pilot lay flat on his stomach (prone position) on the lower wing to reduce air drag.
• The elevator (a horizontal control surface) was placed at the front of the aircraft rather than at the back.

The forward-placed elevator, known as a canard, was chosen for safety. If the glider lost flying speed (stalled), the craft would parachute down gently in a flat position instead of diving nose-first into the ground.

Finding the Ideal Testing Ground at Kitty Hawk

The brothers needed a remote location with strong, steady ocean breezes, soft sand dunes for gentle landings, and open spaces. After writing to the United States Weather Bureau, they chose Kitty Hawk, North Carolina, a small fishing village on the windy Outer Banks.

In September 1900, Wilbur arrived at Kitty Hawk and stayed with local postmaster William Tate and his family. Soon, Orville joined him, and they set up a camp among the massive sand dunes known as the Kill Devil Hills.

Flying the 1900 Glider

Testing began in early October 1900:

• The brothers first flew the glider like a giant unmanned kite held by ropes.
• Wilbur then climbed aboard while ground helpers held tether lines to keep the craft steady.
• Finally, Wilbur made about a dozen free glides down the sandy slope of Big Kill Devil Hill.

Although the glider did not generate as much lift as old scientific tables predicted, the wing-warping system worked well. The horizontal elevator gave good control over pitch. When camp closed for the winter, the brothers left the frame behind. Mrs. Addie Tate later used the wing fabric to make new dresses for her daughters.

The 1901 Glider: Facing New Challenges

Orville Wright with the 1901 glider, pointing its nose upward toward the sky.

Bigger Wings and Scientific Surprises

In the summer of 1901, the brothers returned to North Carolina with a much larger glider. They wanted to generate enough lift to carry a pilot in gentler winds:

• The wingspan was increased to 22 feet (6.7 meters), with a total wing area of 290 square feet (27 square meters).
• The glider weighed 98 pounds (44.5 kilograms).
• The curve of the wing, called camber, was made much deeper.

Between July 27 and August 17, 1901, Wilbur made between 50 and 100 free gliding flights from the Kill Devil Hills. However, the machine did not behave as well as expected.

Discovering Wing Stalls and Lift Problems

The deep wing curve caused unpredictable problems in the air:

• Wilbur found that the center of air pressure moved backward at higher speeds, making the nose dip unexpectedly.
• The glider suffered from sudden wing stalls, forcing Wilbur to push the front elevator to its extreme limits.
• The glider produced only about one-third of the lift predicted by historical formulas.

The brothers began to realize that the accepted scientific calculations, including the famous Smeaton coefficient used for over a century, contained mathematical errors.

Uncovering Adverse Yaw

The 1901 glider revealed another mystery in aerodynamics called adverse yaw:

• When Wilbur warped the wings to bank toward one side, the higher wing created extra air resistance (drag).
• This extra drag pulled that wing back, causing the aircraft's nose to turn in the wrong direction.

Wilbur and Orville were frustrated by these issues. On the train ride back to Dayton, Wilbur felt so discouraged that he wondered whether humans would ever master flight. However, instead of quitting, they turned their bicycle workshop into a scientific laboratory.

The Wind Tunnel Breakthrough of 1901

Building a Homemade Laboratory

In the fall of 1901, the Wrights built a miniature wind tunnel inside their Dayton bicycle shop. The tunnel was a wooden box 6 feet (1.8 meters) long and 16 inches (40 centimeters) square:

• A small engine turned a fan that blew a smooth stream of air through the wooden tube.
• Inside the tunnel, they mounted delicate measuring balances made of bicycle spokes and scrap metal.
• They tested over 200 different miniature wing shapes made from pressed sheet metal.

Creating Accurate Aerodynamic Data

By measuring lift and drag on all these miniature wings, the Wrights discovered the truth:

• Old aerodynamic tables were incorrect and overestimated air pressure.
• Longer, narrower wings (high aspect ratio) produced much more lift and less drag than short, wide wings.
• Wing curvature needed to be gentler and placed closer to the front edge of the wing.

With these accurate tables, Wilbur and Orville designed their third glider with absolute mathematical precision.

The 1902 Glider: The Three-Axis Masterpiece

Wilbur Wright gliding in the 1902 machine, featuring the newly developed steerable rear rudder.

Engineering the 1902 Glider

Built during the winter of 1901 and assembled at Kitty Hawk in September 1902, the new craft was a major leap forward:

• It had long, narrow wings with a span of 32 feet (9.8 meters) and an area of 305 square feet (28.3 square meters).
• The glider weighed 117 pounds (53 kilograms).
• The wing curve was reduced to a gentle 1-in-25 ratio.
• A hip cradle allowed the pilot to slide his hips sideways to pull the wing-warping cables.

The Steerable Rudder and True 3D Flight Control

At first, the brothers installed two fixed vertical fins at the tail to prevent adverse yaw. However, during turns, the fixed fins caught the wind and caused several uncontrolled side-slips into the sand.

Orville suggested making the vertical tail movable instead of fixed. Wilbur agreed, and added a clever innovation: they connected the rudder wires directly to the wing-warping hip cradle. Now, when the pilot warped the wings to bank, the rear rudder automatically turned to counter adverse yaw.

This design created the world's first complete three-axis control system:

• Pitch (nose up or down) controlled by the front horizontal elevator.
• Roll (wings tilting left or right) controlled by wing-warping.
• Yaw (nose turning left or right) controlled by the movable rear rudder.

Record-Breaking Glides

In October 1902, the brothers made over one thousand successful gliding flights:

• They soared distances greater than 600 feet (180 meters).
• They stayed aloft for over 26 seconds per flight.
• Both Wilbur and Orville learned to fly confidently in winds exceeding 30 miles per hour (48 kilometers per hour).

The 1902 glider was the direct foundation for the 1903 Wright Flyer. With three-axis control perfected, the brothers were finally ready to add a custom engine and propellers.

Glider Specifications Comparison

The 1911 Glider: Soaring into History

Orville Wright soaring over Kill Devil Hills in the 1911 glider.

A Return to Kitty Hawk

In October 1911, Orville Wright returned to Kill Devil Hills alongside his English friend Alec Ogilvie. By this time, the Wright brothers were internationally famous for their powered aircraft.

Orville brought a newly designed glider to test an automatic stability system. Because curious news reporters crowded the dunes, Orville kept his secret device locked away. Instead, he spent his days practicing pure unpowered soaring in ocean winds.

Setting a World Soaring Record

The 1911 glider used modern aviation features:

• The elevator was moved to the rear tail instead of the front.
• The pilot sat upright on a seat with handheld control levers.
• The craft was strong enough to handle gusty coastal gales.

On October 24, 1911, Orville took off into a powerful 40-mile-per-hour (64-kilometer-per-hour) gale. Using rising air currents over Big Kill Devil Hill, he hovered and soared for 9 minutes and 45 seconds.

This flight set a world soaring endurance record that stood unbeaten for ten years.

Preserved Relics and Working Replicas

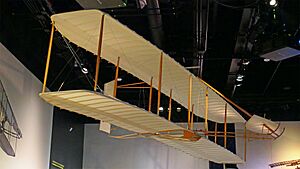

A replica of the 1902 Wright Glider on display at the Smithsonian National Air and Space Museum.

Preserving the Original Artifacts

None of the original complete gliders survived the rough storms of the Outer Banks:

• The 1899 kite and 1900 glider fabric were repurposed or cleared away.
• The 1901 and 1902 gliders sat in wooden storage sheds damaged by strong winds.
• A surviving wooden wingtip fragment from the original 1902 glider is preserved at the Smithsonian Institution's National Air and Space Museum in Washington, D.C.

Museum Replicas and Educational Flights

Modern aviation historians have created full-scale working copies of the Wright gliders:

• Historian Rick Young built accurate replicas of the 1899 kite, 1900, 1901, and 1902 gliders for research and documentary films such as On the Wing.
• A replica of the 1902 glider is displayed at the Dayton Aviation Heritage National Historical Park in Ohio.
• Full-scale and scale models are displayed at the San Diego Air & Space Museum, the National Soaring Museum in Elmira, New York, and the Wings Over the Rockies Air and Space Museum in Denver, Colorado.
• A replica of the 1911 glider, constructed by sailplane builder Ernest Schweizer, has hung in the National Soaring Museum since 1986.

Importance in Aviation History

The Wright gliders changed science and technology forever:

• Scientific Method: The Wright brothers showed that careful testing in wind tunnels could correct long-standing errors in scientific books.
• Three-Axis Control: Their combination of roll, pitch, and yaw control became the universal standard for all airplanes built today.
• Pilot Training: By practicing hundreds of times in safe, motorless gliders, the brothers became skilled pilots before ever starting an aircraft engine.

Through their work on these gliders, Orville and Wilbur Wright unlocked the secrets of controlled flight and opened the skies to the world.
