East Bay Electric Lines facts for kids

The East Bay Electric Lines were a unit of the Southern Pacific Railroad that operated electric interurban-type trains in the East Bay region of the San Francisco Bay Area. Beginning in 1862, the SP and its predecessors operated local steam-drawn ferry-train passenger service in the East Bay on an expanding system of lines, but in 1902 the Key System started a competing system of electric lines and ferries. The SP then drew up plans to expand and electrify its system of lines and this new service began in 1911. The trains served the cities of Berkeley, Albany, Emeryville, Oakland, Alameda, and San Leandro transporting commuters to and from the large Oakland Pier (the "mole") and SP Alameda Pier. A fleet of ferry boats ran between these piers and the docks of the Ferry Building on the San Francisco Embarcadero.

The East Bay Electric Lines became the Interurban Electric Railway (IER) in anticipation of the opening of the Bay Bridge Railway in January of 1939. This railway consisted of two tracks on the southern side of the lower deck of the San Francisco–Oakland Bay Bridge, running from the East Bay to the San Francisco Transbay Terminal. SP IER transbay commuter train service ended in July 1941.

History

Before Electrification (1863–1911)

Prior to the formation of the East Bay Electric Lines (and later Interurban Electric Railway), commuter services by the Southern Pacific Railroad and predecessor Central Pacific Railroad were run entirely by steam traction. The first railroad to operate suburban services in the East Bay was the San Francisco & Alameda Railroad, which was formed on March 25, 1863.

Through a series of mergers with the San Francisco, Alameda, & Stockton Railroad Company and the prior San Francisco & Alameda Railroad, the San Francisco, Oakland, & Alameda Railroad (SFO&A) was formed in June of 1871. The SFO&A would be absorbed by the Central Pacific Railroad in August. With the merger with the Central Pacific, trains would terminate at the Oakland Mole (a long ferry pier into the San Francisco Bay), starting in January of 1882. Suburban commuter services by the Central Pacific would be operated in the same manner after Southern Pacific took over.

In 1902 the San Francisco, Oakland, & San Jose Railway (SFO&SJ) would build a three and a quarter long mile pier from Emeryville into the San Francisco Bay. The "Key Mole" as referred to by patrons would rival the Southern Pacific's Oakland Mole for speed and general service. The SFO&SJ interurban line was faster, quicker, cleaner, and quieter than the Southern Pacific's steam operations, which paled in comparison. Between 1902 and 1911, the appeal of the SFO&SJ, and later companies San Francisco, Oakland, & San Jose Consolidated Railway and Key System, would rival the Southern Pacific's steam operated commuter operations. After management changed hands in the Southern Pacific between Collis P. Huntington and Edward H. Harriman, the decline of revenue by the rivalry would force the Southern Pacific to electrify their lines in competition in 1911.

Electrification to Reorganization (1911–1934)

In 1911 Southern Pacific embarked on a task to double track and electrify its commuter lines. When the construction of catenary over the new lines was complete, Southern Pacific received a new fleet of 72 foot long steel interurbans from the American Car & Foundry Company in the later months of 1911. When the electrification of the lines was completed, a passenger could board an East Bay Electric Lines interurban from either the Oakland or Alameda Moles, and travel to Dutton Avenue, Thousand Oaks, Albany, Berkeley, and Downtown Oakland. Long term plans called for extensions to Richmond and San Jose (to presumably link up with Southern Pacific's other interurban subsidiary, the Peninsular Railway), which never materialized.

In addition to interurban service, streetcar service began in 1912 through various sections of the cities it served. A series of smaller streetcars by the Pullman Car Company also served these lines, until 1930. Between 1912 and 1930 there was little change to the services of the East Bay Electric Lines. However, in 1930 all streetcar services ceased in Oakland and Berkeley as they had failed to turn a profit due to the onset of the automobile and Great Depression. In 1934, the East Bay Electric Lines reorganized as the Interurban Electric Railway (IER), in anticipation of the completion of the San Francisco Bay Bridge.

Due to the advent of automobile service and the Great Depression, the IER was rapidly losing both money and patronage, so a franchise was granted to them for operation on the lower deck of the Bay Bridge to the new Transbay Terminal, in order to entice new patrons.

Bay Bridge Operation to Abandonment (1934–1941)

From the reorganization of the East Bay Electric Lines into the Interurban Electric Railway in 1934, the new IER had already begun plans to reroute service and maintenance facilities well before the Bay Bridge had been completed. The location of the approach to the Bay Bridge was located directly next to the Key System's trackage that led to the Key Mole. So, the Interurban Electric Railway began construction of a trestle over the Southern Pacific and Aitchison, Topeka, & Santa Fe Railroad tracks in order to access this new area. Additionally, it was agreed that the IER and Key System should share a maintenance facility in the new Bridge Yard, so work began on a new facility and yard storage area for the two lines.

When completed, the new Bridge Yard would replace existing Key System tracks with a joint Sacramento Northern, Interurban Electric Railway, and Key System maintenance yard. Extra trains for Bay Bridge usage could also be stored here, but this practice was not used by the Sacramento Northern Railroad who preferred to utilize an existing yard.

The Interurban Electric Railway's new route also featured a fly-over bridge over Key System / Sacramento Northern tracks. From the Bridge Yard to the new Transbay Terminal, the three interurban lines would share two tracks. This required an extensive signaling system, so all trains were retrofitted with special signaling devices that warned of speed limit and the automatic block signaling. Electrification on the bridge would be at 1300 volts for the Sacramento Northern and Interurban Electric Railway, so all trains were also retrofitted to run on this voltage.

Beginning January of 1938, IER trains could now run across the Bay Bridge. Routes now terminated at the Transbay Terminal, but with a central stop at the 26th Street Station for transferring, instead of the usual Oakland and Alameda Moles. With the new addition of interurban service to San Francisco, patrons from Berkeley, Oakland, Alameda, and upper San Leandro could now ride into San Francisco. The IER saw a brief increase of patronage, but due to automobile competition and the fact that cars had been allowed to use the Bay Bridge since 1936, the IER could not compete. Between 1938 and 1940 the IER reduced services drastically in order to try and stay afloat, but could not.

On February 26, 1940, the IER applied to the Public Utilities Commission to abandon services. Interurban commuter services were no longer making money. On July 26th, 1941, the Interurban Electric Railway ran its last interurban, and was shut down the following day.

Lines

1927 map of the East Bay Electric Lines near their full extent

The East Bay Electric Lines were originally designated mainly by the names of their principal streets. They received numbers for Bay Bridge service. The most significant changes occurred as the result of the removal of the Harrison St. bridge between Oakland and Alameda in December 1923, and the agreement with the Key System in March 1933, with the Bay Bridge plans in view, to abandon duplicating lines, on the basis of which company first served each area.

The Oakland 7th Street Line carried the most passengers, with the Berkeley Shattuck Avenue Line being second. Patronage was at a maximum about 1920 and had declined by about half by the time of Bay Bridge operation.

The SP seemed to prefer to have groups of their lines terminate at the same place. Three lines originally terminated at Thousand Oaks in Berkeley, two at 14th and Franklin in Oakland, and two at High St S. in Alameda. The IER had two lines terminate at Thousand Oaks and two lines at West Alameda.

• Berkeley, California St Line - Thousand Oaks station at the intersection of Solano and Colusa Avenues (Colusa Wye) in Berkeley, via Colusa, Monterey, private right-of-way, California, Stanford to the upper platform of the Oakland 16th St Station, thence to Oakland Pier. Terminated March 1933.
• Berkeley, Shattuck Ave Line (originally Berkeley Branch Railroad steam line) - Thousand Oaks station (Colusa Wye) in Berkeley, via Solano, private right-of-way, Northbrae Tunnel, Sutter, Henry, Shattuck (stopping at Berkeley Station), Adeline, Stanford to the upper platform of the Oakland 16th St Station, thence to Oakland Pier. Designated Line # 3 (local) and # 9 (express) for Bay Bridge service, re-routed direct to the bridge with no stop at Oakland 16th St Station. During Bay Bridge operation, the last train of the day (early morning) to leave San Francisco was extended from Thousand Oaks along the outer 9th St Line to Albany (San Pablo Ave) because there was no 9th St Line service at this time; this was the last IER service when terminated in July 1941.
• Berkeley, 9th Street Line - Thousand Oaks station (Colusa Wye) in Berkeley, via Solano, Jackson, private right-of-way, 9th Street to private right-of-way to Stanford to the upper platform of the 16th Street Station in Oakland, thence to Oakland Pier. Designated Line # 5 for Bay Bridge service, re-routed direct to the bridge with no stop at Oakland 16th St Station. Terminated July 1941.
• Berkeley, Ellsworth St Line - Ellsworth and Allston Way in Berkeley, via Ellsworth to Woolsey, Adeline, Stanford to the upper platform of the Oakland 16th St Station, thence to Oakland Pier. Line shortened one block to Bancroft Way in 1931. Terminated March 1933.
• Oakland, 7th St, Dutton Ave Line (originally San Francisco and Oakland Railroad steam line) - Dutton Ave and Bancroft in San Leandro, through the neighborhoods of Eastmont (with freight service to the Chevrolet plant that became Eastmont Town Center decades later), Havenscourt, and Seminary, via Bancroft, Almond St, then private right-of-way to 90th Ave, then Blanche St to 82nd Ave, then private right-of-way to Ritchie Ave, then Beck St to 73rd Ave, then private right-of-way to Church St, then Beck St to 64th Ave, then private right-of-way to Seminary Ave, then Bond St to private right-of-way leading through Melrose and along the SP main line tracks through Fruitvale to 7th St, then 7th to Oakland Pier. Originally, regular trains operated only as far as Havenscourt, with a Suburban Connection train meeting every other train and operating to Dutton Ave. Starting in February 1924 all trains operated to Dutton Ave., but the last few cars of each outbound train were removed at Seminary Ave, then added to the front of the next inbound train. During rush hour an additional express train operated via Alameda Pier and the Lincoln Avenue line, stopping only at Park St N. (Alameda), crossing the Fruitvale Bridge, joining the 7th St line east of Fruitvale Station, and making limited stops to the end of the line. Designated Line # 2 (local) and # 7 (express) for Bay Bridge service, and re-routed via the upper platform of the Oakland 16th St Station. Starting in March 1939, all cars operated through to Dutton Ave. Terminated March 1941.
• Alameda, Encinal Ave Line (originally South Pacific Coast Railroad steam line) - High St South, via Encinal, Central, Main, private right-of-way to Alameda Pier. Outbound trains arriving at High St South became inbound Lincoln Ave trains. Designated Line # 4 eastbound and # 6 westbound for Bay Bridge service, starting at West Alameda, via private right-of-way, Main, Central, Encinal, Fernside, private right-of-way, Fruitvale Bridge, private right-of-way alongside Fruitvale Ave to junction with 7th St line at Fruitvale Station. Terminated, January 1941.
• Alameda, Lincoln Ave Line (originally San Francisco and Alameda Railroad steam line) - High St South, via Fernside, private right-of-way to Alameda Station at Park St, then Lincoln to 5th St, then private right-of-way to 4th St, Pacific, Main, private right-of-way to Alameda Pier. Outbound trains arriving at High St South became inbound Encinal Ave trains. Designated Line # 6 eastbound and # 4 westbound for Bay Bridge service, starting at West Alameda, via private right-of-way to Main, then Pacific to 4th St, then private right-of-way to 5th St., Lincoln to Alameda Station, private right-of-way, Fruitvale Bridge, private right-of-way alongside Fruitvale Ave to junction with 7th St line at Fruitvale Station. Terminated, January 1941.
• Alameda via Fruitvale (Horseshoe) Line (originally Central Pacific Railroad steam line) - Alameda Pier (or other Alameda location on Lincoln Ave line) to Oakland Pier via Fruitvale Bridge. An important purpose of this line was to give Alameda residents access to main-line trains at Oakland Pier. Terminated, January 1939.
• Oakland, 18th Street Line - 14th and Franklin Station, via Franklin to 20th, 20th (alternating with 21st) to West Street, then via diagonal private right-of-way to 18th Street, 18th to the upper platform of the Oakland 16th St Station, thence to Oakland Pier. In 1926, starting at Webster and 2nd St via Webster to 20th to Franklin and as before. Terminated March 1933.
• Oakland via Alameda Pier Line (originally South Pacific Coast Railroad - steam line) - 14th and Franklin Station, via Webster, Harrison St bridge, to private right-of-way to Alameda Pier. Terminated December 1923.
• Crosstown Streetcar Line - Oakland 16th St Station, via 18th St, then via diagonal private right-of-way to West St to 20th (alternating with 21st) to Franklin, through 14th and Franklin Station to Webster St to Harrison St bridge to private right-of-way to Mastick (Alameda) to 8th to Central to Encinal to Fernside to private right-of-way to Lincoln to Mastick and back. Alternate cars went around the Alameda loop in the opposite direction. Some service was to 14th and Franklin only. In December 1923, all service was cut back to the 14th and Franklin station. Terminated March 1926.
• Mail trains - Starting in December 1923, mail trains, usually consisting of one box motor, loaded sacked mail several times a day at Oakland Pier and delivered it to Oakland 16th St Station and to Berkeley Station. Mail from Oakland Pier was also delivered to Alameda Station, using trains of cars being sent from Oakland Pier to the Alameda Shops for maintenance and repair. Terminated November 1938.

Equipment

Catenary Equipment and Substations

Electrification of the 52 or so miles of trackage began in early 1911, using No. 0000 grooved copper trolley wire, 7/16 inch messenger wires, and hanging loop catenary. Electrification was at 1200 volts direct-current, which allowed for higher speeds, faster acceleration, and less power loss. Substations located at the Tidal Canal (along Fruitvale Ave), Thousand Oaks, and West Oakland converted 1320 volt Alternating-Current into 1200 volts direct current. Catenary cross-arms were of a simple construction, using a center iron pole (painted black) and trolley cross-arms at either 60 or 120 feet of length to hold the catenary wiring.

There were different methods of the application of the towers to hold the catenary in certain settings on the lines. The East Bay Electric Lines had trackage over a series of estuaries and rivers, including the San Francisco Bay, which meant that due to the limitations of the infrastructure over these bodies of water the usual method of center-pole and cross-arm located in-between the double-track was given up, in favor of 65 feet tall iron poles in a lattice formation, that held up the catenary. Additionally, this style of catenary construction was applied on the four track segment of track that paralleled the Southern Pacific's mainline via Oakland.

Car-shops

In order to maintain its fleet of electric locomotives, the East Bay Electric Lines and later Interurban Electric Railway had two shops, the Alameda Shops and the Bridge Yard. The Alameda Shops were located at West Alameda, on the Oakland Estuary, and the Bridge Yard was the general maintenance yard for the Interurban Electric Railway and Key System just before the Bay Bridge.

Interurbans

American Car & Foundry Company Interurbans

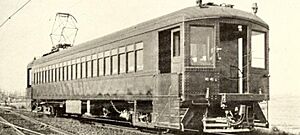

Photo of an original East Bay Electric Lines interurban when delivered by the American Car & Foundry Company. Note the rectangular windows.

To provide faster transportation on its commuter lines, Southern Pacific purchased steel interurbans from the American Car & Foundry Company (AC&FC). The first group of cars arrived in 1911 from the AC&FC and consisted of 40 powered passenger coaches (motors), 25 powered combination baggage-passenger cars (combos), and 50 unpowered passenger coaches (trailers), some with train controls and some without. They had large rectangular end windows, which proved to be a liability for train crews in accidents. Eventually, these rectangular end windows would be replaced with circular windows, reminiscent of portholes and similar to the Pennsylvania Railroad's MP54 electric suburbans. The circular windows however would not be applied to trailers, or trains that lacked train controls.

The first steel cars were 73 feet long, and were moderately heavy as they weighed 1562 pounds per running foot. However, they were light when measuring weight per passenger due to their high capacity of seating. The large seating of the interurbans (which sat 2 - 3 people per seat) allowed for a general capacity of 116 patrons.

When first acquired by the AC&FC, the interurbans were painted an olive green, which was standard among most passenger cars of the time. Eventually the interurbans were repainted a bright red, which led to many patrons calling the interurbans the "Big Red Cars". The color remained until abandonment.

After abandonment of electric service in the East Bay, most of the interurban cars went to the Pacific Electric, though some were deeded by the California Toll Booth Authority and used in Utah and Nevada during World War 2. Most were retired when Pacific Electric ceased service in 1961, though some remain preserved in museums such as the Western Railway Museum, Southern California Railway Museum, and Travel Town Museum.

Pullman Company Interurbans

Beginning in 1913, East Bay Electric commissioned the famous Pullman Car Company to produce a series of interurbans, similar to that of the American Car & Foundry Company's style construction. The style consisted of 10 motors, 4 combination cars, and 2 powered express-baggage cars (commonly known as box motors). These differed from the AC&FC's style because these new interurbans all featured the safer rounded windows in the front and backs in the original construction, and seated only 111 passengers.

After the abandonment of the East Bay Electric, all of these interurbans were sent to the Pacific Electric for conversion into the famous "Blimps" or "Red Cars". All were retired by 1953.

St Louis Car Company Interurbans

In addition to the AC&FC and Pullman built interurbans, the Southern Pacific commissioned the St Louis Car Company to produce more interurbans. These cars were identical to their predecessors, bearing the rounded windows at the front and backs. Only six motors were produced. These cars seated only 108 patrons.

All were scrapped.

Streetcars

The East Bay Electric Lines also operated a series of more suburban local services, which were served by a series of streetcars, smaller and slower than the interurbans.

Pullman Company Streetcars

The only company to manufacture streetcars for the East Bay Electric Lines was the Pullman car company. Twenty were manufactured, all featuring center-bay doors for boarding on low-platforms. The streetcars were meant for more local service, which also means they had a lower passenger seating limit, only 86 patrons.

In 1913 it was found that they had too many streetcars for the low demand of the line, so ten cars were sent to the Pacific Electric for operation there. However, two cars were brought back in 1919 due to a need for more streetcar services. In 1926, because of declining patronage, the streetcars were sent to rival Key System for operation on the subsidiary East Bay Street Railways (EBSR).

However, the EBSR was converting to one-man operation, which means that the motorman acts as the conductor too, and the streetcars were built for the traditional two man operation (meaning there would have been a motorman and a conductor). This led to their downfall, and in 1933 all were scrapped.

Operating Practices and Improvements

The usual operating practice was that the number of powered cars in a train was at least one more than the number of trailers. Trailers, with or without train controls, were always placed in the middle of trains; train controls on trailers were mainly used in assembling or disassembling trains. As ridership declined and trains became shorter, trailers were primarily used only during rush hour. Combos were used to carry checked baggage to and from main-line trains at Oakland Pier and to deliver bundled newspapers. They were usually put on the end of the train toward Oakland Pier, and most commonly on the 7th St Line as far as Havenscourt or Seminary Avenue. When plans for longer routes were not implemented, 21 of the ACF combos were changed to motors at the time they received their round end windows in the 1920s. Due to the heavy grades on the Bay Bridge, 10 trailers were changed to motors in 1938 when all the passenger-carrying cars were modified with automatic train control and other safety equipment for bridge operation. The California Toll Bridge Authority (TBA) funded these changes and received title to 58 cars in return. All cars carried the name "Southern Pacific Lines" until Bay Bridge service began, when the IER-owned cars were repainted with "Interurban Electric Railway Company".

Aftermath

Lines

Revival of Lines for Key System

The rival Key System assumed rights to some of the trackage and overhead wires of abandoned IER/SP routes. This had first occurred due to the 1933 consolidation. In March 1933, the abandoned California St line in Berkeley from about Ada and California Sts, up Monterey Avenue to Colusa Ave, was used for the Key's Sacramento St Line (H line) until abandonment in July 1941. In April 1941, a portion of the abandoned 7th St, Dutton Ave Line in East Oakland, from East 14th St to Havenscourt Boulevard, was used to extend the Key's 12th St Line (A Line) until October 1950, when this line was cut back to 12th and Oak Sts. In August 1941, a portion of the Shattuck Ave line in Berkeley, from about Dwight Way to the south end of the Northbrae Tunnel was used to extend the Key's Shattuck Ave Line (F Line). In December 1942, the F Line was extended through the tunnel to the intersection of Solano Ave and The Alameda. The F Line was abandoned in April 1958.

Key System streetcars also used the IER Shattuck Avenue tracks from Parker St to University Ave until abandonment in November 1948. During World War II the Key System used a portion of the 7th St, Dutton Ave Line tracks in Oakland on 7th St, from Broadway to Pine St, for streetcar service to a shipyard and most of the 9th St track of the 9th St Line for the Richmond Shipyard Railway.

Freight Service

SP freight service continued over parts of the 9th St, Shattuck Ave, 7th St and Lincoln Ave Lines. An excursion train pulled by a steam locomotive was operated over this track in April 1954, by the Bay Area Electric Railroad Association. By 1960, all except the part from the 9th St Line had been abandoned.

Infrastructure remnants

Although not a lot remains infrastructure wise of the old East Bay Electric, there are some very noticeable remains. The Northbrae Tunnel, which runs between Sutter St and Solano Avenue underneath the Fountain Roundabout, is one of the most physical remains of the SP/IER. The tunnel once was a main artery for the SP interurbans into Thousand Oaks, and was used by Key System well after abandonment of SP electric service.

Additionally, the elevated platforms of the IER still exist at Southern Pacific's 16th Street Station in Oakland. Although interurban service ceased to the elevated platforms in 1941, the platforms were never torn down and still remain today as a visible reminder of former IER service. However, both approach trestles to the elevated platform were demolished during abandonment. The trestle that crosses the Southern Pacific mainline however still exists, partially. The northbound portion of the trestle was formerly in use by the Oakland Terminal Railway, a Key System subsidiary meant to handle freight. Sections of the trestle have been cut down, such as large sections of the former double-tracked bridge, which was downgraded to single-track during the sixties and seventies, after switching motions were no longer required on the bridge. The southbound portion of the trestle was converted to a road after abandonment, and does not exist anymore aside from a 280 foot long section. Since 2011, the Oakland Terminal Railway has no longer used the trestle for a variety of reasons, most notably being a 4% grade and weight limits. A lack of customers caused the line to cease using the trestle. Since then there is no track access on either side, leaving it isolated from the national rail network.

Aside from the Northbrae Tunnel, 16th Street Station, and trestle, nothing else too visible remains. The Emeryville Greenway between 9th street and Stanford Ave is a section of former IER right of way that serviced the interurban line to Thousand Oaks.

Equipment

After the SP streetcar line was abandoned in 1926, all 12 cars were sold to the Key System.

After IER service ended, the TBA separated its 58 cars from the SP's 89 cars. In 1942, the TBA sold 6 motors for scrap in January and the remaining 52 cars to the Houston Shop Corp., which shipped them via the SP to Houston. One of the TBA trailers was wrecked in transit, so the SP replaced it with one of its trailers. The SP sent the 2 box motors to the PE, in March and April used 5 trailers for buildings in West Oakland, and stored their remaining 81 cars until they were requisitioned in July and September by the United States Maritime Commission for use in transporting workers to World War II shipyards: 20 trailers to a line in the Portland, Oregon, area and 61 cars to the PE in Southern California where some of them were in use until that system ceased operations in 1961. Many cars were reassigned to other locales during World War II. A few of the cars have been preserved.

Preserved Interurbans
