Space rendezvous facts for kids
A space rendezvous is when two spacecraft, often one being a space station, perform special moves to get into the same orbit. They then approach each other very closely, sometimes even close enough to see each other! This requires super careful planning to match their speeds and positions perfectly. After a rendezvous, they might even connect, which is called docking or berthing. This creates a physical link between them. This amazing technique is also useful for landing on small moons or asteroids with weak gravity.
Contents
How Spacecraft Meet in Orbit
Early Steps in Space Meeting
The journey to mastering space rendezvous began with small steps. In the early 1960s, the Soviet Union launched pairs of Vostok spacecraft. They tried to get them close in orbit. However, these early ships couldn't steer themselves to truly meet. They started a few kilometers apart but drifted thousands of kilometers away.
Later, in 1964, the Soviets guided two uncrewed satellites, Polyot 1 and 2, to within 5 kilometers of each other. They even managed to talk to each other by radio!
Around the same time, in 1963, future astronaut Buzz Aldrin wrote his university paper about how to guide spacecraft to meet in orbit. He later helped his fellow NASA astronauts understand these tricky space maneuvers.
Learning from Early Tries (Gemini 4)
NASA's first try at a space rendezvous was on June 3, 1965. Astronaut Jim McDivitt in Gemini 4 attempted to meet his rocket's upper stage. He couldn't get close enough. Part of the problem was that astronauts didn't fully understand how orbits worked.
It's not like driving a car. If you speed up in orbit, you actually go higher. Going higher makes you move slower relative to objects in a lower orbit. This means you fall behind your target! To catch up, you actually need to go into a slightly lower orbit, which makes you move faster. Then, you can boost back up to the target's orbit when you're close.
An engineer from the Gemini program later said that everyone, including the astronauts, "just didn't understand... the orbital mechanics involved." But, he added, "we all got a whole lot smarter and really perfected rendezvous maneuvers." This knowledge was key for future missions like the Apollo program.
First Successful Space Meet-Up (Gemini 6/7)
The first truly successful space rendezvous happened on December 15, 1965. US astronaut Wally Schirra carefully guided his Gemini 6 spacecraft. He brought it to within just 30 centimeters (about 1 foot) of its sister ship, Gemini 7!
The two spacecraft couldn't physically connect. But they stayed close together for over 20 minutes. Schirra later explained that a real rendezvous means being "completely stopped" relative to the other vehicle. He said it's like "driving a car or driving an airplane or pushing a skateboard" once you're that close. He compared earlier Soviet attempts to "a passing glance," not a true meeting.
First Time Spacecraft Connected (Docking)

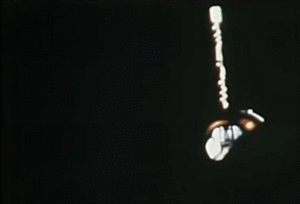

The very first time two spacecraft physically connected, or docked, was on March 16, 1966. This amazing feat was achieved by Gemini 8, commanded by Neil Armstrong. They docked with an uncrewed Agena Target Vehicle.
The Soviet Union also made progress. They achieved the first automated docking between two uncrewed satellites, Cosmos 186 and Cosmos 188, in October 1967.
The first successful docking with astronauts inside happened on January 16, 1969. The Soviet spacecraft Soyuz 4 and Soyuz 5 docked. Two crew members from Soyuz 5 even spacewalked to Soyuz 4!
Later that year, in March 1969, Apollo 9 made history. It was the first time astronauts could move from one docked spacecraft to another without going outside.
A truly special moment came in 1975 with the Apollo–Soyuz mission. This was the first time spacecraft from different countries, the US and the Soviet Union, docked together. It was a symbol of cooperation in space.
In January 1978, the Salyut 6 space station hosted a "multiple docking." Both Soyuz 26 and Soyuz 27 were docked at the same time. This allowed a second crew to visit a space station that already had astronauts living there.
Why Space Rendezvous is Important
Space rendezvous is super important for many reasons! Every time astronauts or supplies go to an orbiting space station, a rendezvous happens. The first spacecraft to do this was Soyuz 11, which docked with the Salyut 1 station on June 7, 1971.
Since then, many human missions have met up with space stations like Skylab, Mir, and the International Space Station (ISS). Today, Soyuz spacecraft regularly take astronauts to and from the ISS. Also, with NASA's Commercial Crew Program, US spacecraft like the Crew Dragon now carry astronauts to the ISS.
Robotic spacecraft also use rendezvous to bring supplies to space stations. Ships like the Progress spacecraft and Europe's Automated Transfer Vehicle automatically dock with the ISS. Other uncrewed spacecraft, such as the Japanese H-II Transfer Vehicle (HTV) and SpaceX Dragon cargo ships, get very close. Then, the ISS's robotic arm, Canadarm2, grabs them and pulls them into a special connection point.
Space rendezvous has also been used for other cool missions. Astronauts used it to repair the amazing Hubble Space Telescope. During the Apollo missions to the Moon, the Apollo Lunar Module would rendezvous and dock with the Apollo Command/Service Module after leaving the lunar surface. In 1992, the crew of STS-49 even rendezvoused with a broken satellite to attach a new rocket motor to it!
In the future, similar techniques could help repair or refuel satellites that are running out of gas.

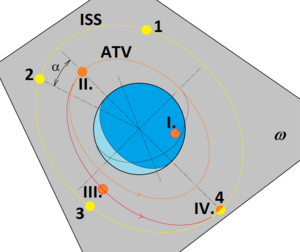

How Spacecraft Get Close: The Science Behind It
To understand how spacecraft meet, you need to know a key rule about orbits. A spacecraft can't just change its speed however it wants. Each orbit has a specific speed. If a spacecraft speeds up, it moves to a higher orbit. If it slows down, it moves to a lower orbit. Here's the tricky part: in circular orbits, higher orbits have a slower orbital speed, and lower orbits have a faster orbital speed.
For a rendezvous, both spacecraft must be in the same orbital path. The "chaser" spacecraft, which is actively moving, is usually placed in a slightly lower orbit than the "target" spacecraft. Because it's in a lower orbit, the chaser moves faster and slowly catches up to the target.
Once they are close enough, the chaser matches the target's orbit. This involves carefully increasing the chaser's speed to move it into the target's higher orbit. This process happens in steps, bringing the chaser closer and closer until they are ready for the final approach and docking.
The final connection usually happens very slowly, at about 3 to 6 centimeters (0.1 to 0.2 feet) per second.
Rendezvous Phases
Meeting in space involves several stages, starting when the two spacecraft are thousands of kilometers apart:
- Long-Distance Catch-Up: The chaser spacecraft adjusts its orbit to slowly close the large distance to the target. This can take days.
- Closer Approach: Once within a few kilometers, the chaser can start seeing or detecting the target. More precise adjustments are made.
- Proximity Operations: The spacecraft are now within hundreds of meters. This phase involves very careful maneuvers to get even closer.
- Final Approach: Within tens of meters, the chaser moves in for the final connection.
- Docking: The two spacecraft physically connect, usually in just a few minutes.
Different Ways to Approach (Methods)
There are two main ways spacecraft approach each other for the final steps of a rendezvous:
V-bar approach
The V-bar approach means the chaser spacecraft comes in horizontally, either from directly behind or directly in front of the target. It moves in the same direction as the target's orbital motion.
If the chaser speeds up to catch the target from behind, it also moves to a slightly higher orbit. To stay on the V-bar line, it needs to fire thrusters to push itself down. If these thrusters fail, the chaser will naturally drift to a higher, slower orbit and fall behind the target. This is a helpful "natural braking effect" for safety. Space Shuttles often used the V-bar approach when docking with the International Space Station.
R-bar approach
The R-bar approach involves the chaser moving either directly below or directly above the target spacecraft. This motion is straight up or down, perpendicular to the target's orbital path.
When approaching from below, the chaser fires thrusters to move upwards towards the target. As it moves higher, its orbital speed doesn't change. This means it will naturally start to fall slightly behind the target. Small rocket pulses are needed to keep it aligned. If these pulses stop, the chaser will drift away from the target. This "natural braking effect" is even stronger than in the V-bar approach, making the R-bar approach generally safer. Many cargo ships, like the H-II Transfer Vehicle and SpaceX Dragon, use the R-bar approach to reach the ISS.
Z-bar approach
A Z-bar approach is when the chaser spacecraft comes in from the side, moving out of the target's orbital plane. This method is less common for docking.
Meeting on Other Worlds
.jpg)
The Apollo 12 mission, which was the second time humans landed on the Moon, performed the first-ever rendezvous outside of Low Earth Orbit. They landed very close to the uncrewed Surveyor 3 probe and even brought parts of it back to Earth!
