Coal mining facts for kids

Kids Encyclopedia Facts
Strip coal mining
Open cut hard rock mining (Kalgoorlie, Western Australia).
Coal mining equipment at the Coal Mining Heritage Park
Coal mining equipment at the Coal Mining Heritage Park

Coal mining is the process of extracting coal from the ground. Coal is valued for its energy content, and, since the 1880s, has been widely used to generate electricity. Steel and cement industries use coal as a fuel for extraction of iron from iron ore and for cement production.

Extraction

Surface mining is done when the coal is near the surface. Coal miners remove the soil above the coal. The coal can then be removed without the coal miners having to go deep underground.

Underground mining is when the coal is farther underground, making it too expensive to remove soil. In this process, coal miners and all of the coal mining equipment are brought deep underground and coal is carried up out of the ground.

Coal mining has had many developments over the recent years, from the early days of men tunneling, digging and manually extracting the coal on carts, to large open cut and long wall mines. Mining at this scale requires the use of heavy equipment in many different forms.

History

Boats hauling coal
Ships have been used to haul coal since Roman times.

Small-scale mining of surface deposits dates back thousands of years. For example, in Roman Britain, the Romans were exploiting most of the major coalfields by the late 2nd century AD.

The Industrial Revolution, which began in Britain in the 18th century and later spread to continental Europe and North America, was based on the availability of coal to power steam engines. International trade expanded rapidly when coal-fed steam engines were built for the railways and steamships.

Until the late nineteenth century coal was mined underground using a pick and shovel, and children were often employed underground in dangerous conditions. Coal-cutting machines were introduced in the 1880s. By 1912, surface mining was conducted with steam shovels designed for coal mining.

Methods of extraction

Surface mining and deep underground mining are the two basic methods of mining. Seams relatively close to the surface, at depths less than approximately 180ft (50m), are usually surface mined.

Coal that occurs at depths of 180 to 300ft (50 to 100 m) are usually deep mined, but in some cases surface mining techniques can be used.

Surface mining

Cerrejonmine1
Trucks loaded with coal at the Cerrejón coal mine in Colombia

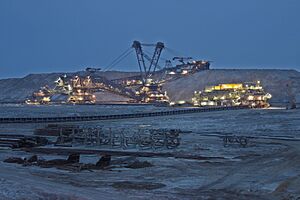

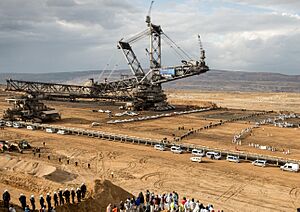

When coal seams are near the surface, it may be economical to extract the coal using open cut (also referred to as open cast, open pit, mountaintop removal or strip) mining methods. Open cast coal mining recovers a greater proportion of the coal deposit than underground methods, as more of the coal seams in the strata may be exploited.

Underground mining

Coal Washer
Coal wash plant in Clay County, Kentucky

Most coal seams are too deep underground for opencast mining and require underground mining, a method that currently accounts for about 60 percent of world coal production.

Continuous Miner
Remote Joy HM21 Continuous Miner used underground

There are six principal methods of underground mining:

  • Longwall mining accounts for about 50 percent of underground production. The longwall shearer has a face of 1,000 feet (300 m) or more. It is a sophisticated machine with a rotating drum that moves mechanically back and forth across a wide coal seam. The loosened coal falls onto an armored chain conveyor or pan line that takes the coal to the conveyor belt for removal from the work area.
  • Continuous mining utilizes a Continuous Miner Machine with a large rotating steel drum equipped with tungsten carbide picks that scrape coal from the seam. Operating in a “room and pillar” (also known as “bord and pillar”) system where the mine is divided into a series of 20-to-30 foot (5–10 m) “rooms” or work areas cut into the coalbed it can mine as much as 14 tons of coal a minute, more than a non-mechanized mine of the 1920's would produce in an entire day. Continuous miners account for about 45 percent of underground coal production.
  • Blast mining or conventional mining, is an older practice that uses explosives such as dynamite to break up the coal seam, after which the coal is gathered and loaded onto shuttle cars or conveyors for removal to a central loading area.
  • Shortwall mining, a method currently accounting for less than 1 percent of deep coal production, involves the use of a continuous mining machine with movable roof supports, similar to longwall. The continuous miner shears coal panels 150 to 200 feet (40 to 60 m) wide and more than a half-mile long, having regard to factors such as geological strata.
  • Retreat mining is a method in which the pillars or coal ribs used to hold up the mine roof are extracted; allowing the mine roof to collapse as the mining works back towards the entrance. This is one of the most dangerous forms of mining, owing to imperfect predictability of when the roof will collapse and possibly crush or trap workers in the mine.

Processing

Before coal can be used, it must be processed in a coal processing plant. It is made smaller using a sizer and crusher. Parts that might be harmful to any equipment which will use the coal later on, such as the screening for metallic parts inside the mined coal.

Delivery

Coal is delivered to customers in several ways. Trucks, conveyors, trains and ships transport coal to be used in factories and power plants.

Production

Top 5 Coal Producing Countries
Coal production trends 1980-2012 in the top five coal-producing countries (US EIA)
Coal mine in Inner Mongolia 002
Coal mine in China
Loy Yang open cut brown coal mine and dredgers
Coal mine in Australia

Coal production has grown fastest in Asia, while Europe has declined. Most coal production is used in the country of origin, with around 16 percent of hard coal production being exported. Coal is mined commercially in over 50 countries.

Coal reserves are available in almost every country worldwide, with recoverable reserves in around 70 countries. At current production levels, proven coal reserves are estimated to last 147 years. However, production levels are by no means level, and are in fact increasing and some estimates are that peak coal could arrive in many countries such as China and America by around 2030.

Modern mining

Technological advancements have made coal mining today more productive than it has ever been. To keep up with technology and to extract coal as efficiently as possible modern mining personnel must be highly skilled and well trained in the use of complex, state-of-the-art instruments and equipment. Many jobs require four-year university degrees. Computer knowledge has also become greatly valued within the industry as most of the machines and safety monitors are computerized.

Environmental impacts

Surface mining of coal completely eliminates existing vegetation, destroys the genetic soil profile, displaces or destroys wildlife and habitat, degrades air quality, alters current land uses, and to some extent permanently changes the general topography of the area mined. This often results in a scarred landscape with no scenic value.

Mine dumps could produce acid mine drainage which can seep into waterways and aquifers, with consequences on ecological and human health.

If underground mine tunnels collapse, they cause subsidence of the ground above. Subsidence can damage buildings, and disrupt the flow of streams and rivers by interfering with the natural drainage.

Coal production is a major contributor to global warming: burning coal generates large quantities of carbon dioxide and mining operations can release methane, a known greenhouse gas, into the atmosphere. The coal mining industry is working to improve its public image.
