Particle accelerator facts for kids
A particle accelerator is like a super-fast racetrack for tiny particles! These amazing machines use powerful electromagnetic fields to push tiny bits of matter, like ions (atoms with an electric charge), to incredibly high speeds and energies. They keep these particles in tight, focused streams called beams.
Scientists use small accelerators to learn about the basic building blocks of everything around us. Larger ones act like super-bright light sources, helping us study materials up close. But it's not just for science! Smaller particle accelerators are used in hospitals to treat cancer, to make special radioactive materials for medical tests, and even to help make computer chips.
Some of the biggest accelerators in the world include the Relativistic Heavy Ion Collider in New York and the giant Large Hadron Collider (LHC) near Geneva, Switzerland. The LHC is a "collider" type, meaning it crashes two beams of particles together head-on. This creates huge amounts of energy, helping scientists discover new things about the universe. There are over 30,000 accelerators working worldwide today!
In the past, people often called these machines atom smashers because their goal was to break apart atoms to see what was inside. Even though many modern accelerators now crash tiny subatomic particles together, the name "atom smasher" still sticks!
Pioneers like Rolf Widerøe, Gustav Ising, Leó Szilárd, Max Steenbeck, and Ernest Lawrence helped invent and build the first working accelerators, including the linear accelerator and the cyclotron.
Contents
What Are Particle Accelerators Used For?
High-energy particle beams are super useful! They help scientists do basic and applied research. They also have many uses in technology and industry. Out of about 30,000 accelerators globally, only about 1% are huge research machines. Most are used for things like medical treatments, making integrated circuits, and industrial processes.
Exploring the Universe's Smallest Parts
Scientists who study particle physics want to understand the very basic rules of matter, space, and time. They use accelerators to create simple interactions at the highest possible energies. This means crashing tiny particles like electrons, positrons, and protons together. The Large Hadron Collider (LHC) at CERN is the biggest and most powerful accelerator for this kind of research. It has been running since 2009.
Studying Atomic Nuclei and Making Medicine
Nuclear physicists use accelerators to study the inside of atoms. They can crash heavy atomic nuclei, like those from iron or gold, together. This helps them learn about conditions similar to the very first moments of the Big Bang! The Relativistic Heavy Ion Collider (RHIC) is a big accelerator for this.
Accelerators can also make special isotopes (different versions of atoms) that are used in medicine. These isotopes help doctors diagnose illnesses or treat them.
Creating Super-Bright Light Sources
When electrons zoom through a magnetic field, they give off very bright light called synchrotron radiation. This light is incredibly useful for studying the structure of atoms, chemistry, biology, and new technologies. There are many "synchrotron light sources" around the world. For example, the Advanced Photon Source in the USA helps scientists see tiny details in materials.
Special types of these light sources, called Free-electron lasers (FELs), create even shorter, brighter pulses of X-rays. These are like super-powered flashlights for science!
Everyday Uses and Medical Treatments
You might have seen a particle accelerator without even knowing it! Old television sets used a type of accelerator called a cathode ray tube. X-ray machines also use small accelerators.
In hospitals, accelerators are used for particle therapy to treat cancer. They can precisely target tumors with beams of accelerated nuclei. This is a very effective way to fight cancer.
Another important use is for sterilizing medical equipment. Electron beams can quickly and effectively clean medical devices, making them safe for use.
How Do Particle Accelerators Work?
There are two main ways particle accelerators push particles to high speeds:
Electrostatic Accelerators: Steady Push
These accelerators use a constant, strong electric field to give particles a single, powerful push. Imagine a slide: the particle goes down once and gains speed. The energy they get depends on how strong the electric field is.
Two common types are the Cockcroft–Walton generator and the Van de Graaff generator. While simple and widely used for lower energies, they can't reach the super-high energies of larger machines because the voltage is limited by electrical breakdown (like a spark jumping).
Electrodynamic Accelerators: Repeated Boosts
For much higher energies, accelerators use changing electromagnetic fields. This is like giving the particles many small pushes, over and over again. Since particles can pass through the same accelerating field multiple times, their energy isn't limited by a single push. Most big, modern accelerators use this method.
Linear Accelerators: Straight Line Speed
A linear particle accelerator (often called a "linac") speeds up particles in a straight line. Think of it as a long tunnel with many electric "kickers" along the way. Each kicker gives the particle a boost as it passes.
The longest linac in the world is the Stanford Linear Accelerator (SLAC) in California, which is 3 kilometers (about 2 miles) long! Linacs are also used in hospitals for radiotherapy to treat cancer. They create electron beams or X-rays to target diseased cells.
Circular Accelerators: Round and Round
In a circular accelerator, particles travel in a circle, getting faster and faster with each lap. Powerful electromagnets bend their path to keep them in a circle. The big advantage is that particles can go around many times, getting continuous boosts of energy. This also means a circular accelerator can be more powerful than a linear one of the same size.
However, when charged particles move in a circle, they give off energy as light, called synchrotron radiation. This is more of a problem for lighter particles like electrons.
Cyclotrons: Spiraling Outward
The first working circular accelerators were cyclotrons, invented in 1929 by Ernest Lawrence. In a cyclotron, particles start in the center and spiral outwards, gaining energy with each turn. A large magnet keeps them in their circular path.
Simple cyclotrons have an energy limit because as particles get faster, they become "heavier" (due to relativistic effects). This makes them fall out of sync with the electric pushes. More advanced versions, like isochronous cyclotrons, adjust the magnetic field to keep particles in sync, allowing them to reach higher energies.
Synchrotrons: The Big Rings
To reach even higher energies, scientists use synchrotrons. These are huge ring-shaped accelerators where particles travel in a circle of constant size. Instead of one big magnet, synchrotrons use many smaller magnets around the ring. As the particles gain energy, the strength of these magnets is increased to keep the particles on the same path.
Synchrotrons accelerate particles in short bursts, or "bunches." The Large Hadron Collider (LHC) at CERN is the world's largest and most powerful synchrotron. It's a proton collider, meaning it crashes protons together at incredibly high energies. The LHC tunnel is 26.6 kilometers (about 16.5 miles) around!
Some synchrotrons are built specifically to create synchrotron radiation (X-rays) for scientific research, like the Diamond Light Source in England.
Rhodotron: A Special Electron Accelerator

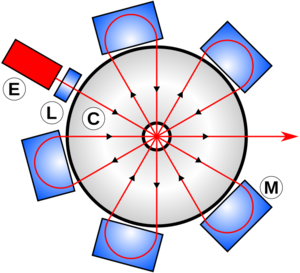

A Rhodotron is a special type of industrial electron accelerator. It makes electrons go back and forth across a cylinder-shaped chamber, getting faster each time. Magnets bend the electron beam to send it back into the chamber for another boost, until it reaches its full energy.
A Brief History of Particle Accelerators
Ernest Lawrence's first cyclotron was tiny, only about 10 centimeters (4 inches) across. But by 1939, he built a much larger one, 1.5 meters (60 inches) in diameter!
The first big proton synchrotron was the Cosmotron in New York, which started in 1953. It accelerated protons to about 3 billion electron volts (3 GeV). The Bevatron in California, built in 1954, was designed to create antiprotons, proving that antimatter exists.
The Stanford Linear Accelerator (SLAC) in California started in 1966. It's 3 kilometers (nearly 2 miles) long and still the largest linear accelerator today.
The Fermilab Tevatron in the USA had a 4-mile (6.4 km) long ring. It was a proton-antiproton collider until it closed in 2011. The LEP at CERN was the largest circular electron accelerator, with a circumference of 26.6 kilometers. It was taken apart in 2000 to make way for the Large Hadron Collider (LHC), which is now the world's biggest and most powerful accelerator.
Large circular accelerators are usually built in underground tunnels. This helps protect people from the strong radiation they produce and makes construction easier.
How Particles Hit Their Targets
After particles are accelerated, their beams can be aimed at different experiments. This is done using special electromagnets that can steer the beam.
Most accelerators aim their particles at a fixed target. This could be a special coating, a piece of metal, or another material. For example, in an X-ray machine, electrons hit a tungsten target to create X-rays.
For advanced particle physics research, scientists often use a collider. This is where two beams of particles travel in opposite directions and then crash into each other head-on. Colliders create much higher energies than fixed-target experiments, which helps scientists discover new particles and forces. The Large Hadron Collider is a famous example of a collider.
Catching the Clues: Detectors
After particles collide or hit a target, scientists need to know what happened! That's where detectors come in. These complex instruments gather information about the new particles created, like their speed and electric charge. By studying these clues, scientists can piece together what happened during the collision and learn more about the universe.
The Future of Accelerators
Scientists are always looking for ways to build even more powerful accelerators. The biggest circular accelerators today are reaching their limits. Future accelerators might need even larger tunnels.
For electron accelerators, a big challenge is the energy lost as synchrotron radiation. So, the next generation of electron accelerators might be very long linear machines, perhaps 10 times longer than current ones! The proposed 40-kilometer (25-mile) long International Linear Collider is an example of this idea.
Scientists are also exploring exciting new ideas like "plasma wakefield acceleration." This method uses a special plasma (a gas of charged particles) to give particles a super-strong boost, much more powerful than current methods. If these new technologies work out, they could lead to smaller, more powerful accelerators for both research and medicine.
Who Operates These Machines?
An accelerator operator is a skilled person who controls a particle accelerator. They adjust settings like the beam's strength and position. They also work closely with maintenance teams to make sure all the complex systems, like the vacuum and magnets, are working perfectly. It's a very important job to keep these powerful machines running safely and smoothly!
