Dispersion (optics) facts for kids

In optics and wave propagation, dispersion is when the speed of a wave changes depending on its frequency. Think of it like different colors of light traveling at slightly different speeds through a material. Sometimes, people use the term chromatic dispersion especially for light.

A material that causes this to happen is called a dispersive medium. This idea of dispersion applies to all kinds of waves, not just light. It can happen with sound waves (acoustic dispersion) or even ocean waves. In technology, dispersion affects signals in transmission lines, like microwaves in coaxial cables or light pulses in optical fibers.

One common example of dispersion is how a prism splits white light into a spectrum of colors. This happens because each color (which has a different wavelength) bends at a slightly different angle when it passes through the prism. This effect is also why lenses can have chromatic aberration, where colors don't focus perfectly. Scientists use something called the Abbe number to measure how much a glass material will disperse light. A lower Abbe number means more dispersion.

Sometimes, the exact speed of a single wave isn't as important as the speed of a group of waves, like a "pulse" of light. In these cases, we look at how the speed of the pulse changes with frequency. This is called group-velocity dispersion.

What is Dispersion?

The most familiar example of dispersion is a rainbow. In a rainbow, tiny water droplets act like prisms. They split white sunlight into its different colors, creating the beautiful arc we see in the sky.

Dispersion also affects technology. For example, in optical fibers, group-velocity dispersion can cause light pulses to spread out. This can make signals blurry over long distances. However, sometimes this effect can be used to create special waves called solitons, which keep their shape.

Material and Waveguide Dispersion

Dispersion can happen in two main ways:

• Material dispersion is when the material itself causes different colors of light to travel at different speeds. This is because the material's refractive index (how much it bends light) changes with the light's color or frequency.
• Waveguide dispersion happens in structures like waveguides (which guide waves, like a tunnel for light). Here, the wave's speed depends on its frequency because of the shape and size of the structure, not just the material it's made from.

In optical fibers, both types of dispersion happen. Engineers can sometimes design fibers so that these two types of dispersion cancel each other out. This creates a "zero-dispersion wavelength," which is very useful for sending fast signals over long distances.

How Material Dispersion Works

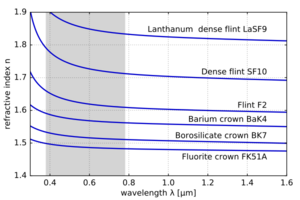

The refractive index changes for different colors of light in various types of glass. Visible light wavelengths are shown in grey.

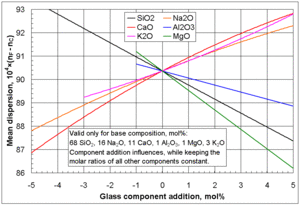

This graph shows how different ingredients added to glass can change how much it disperses light.

Material dispersion can be helpful or unhelpful. For example, spectrometers use prisms to split light into its colors, which helps scientists study light. But in camera lenses or telescopes, dispersion causes chromatic aberration. This makes images blurry because different colors don't focus at the same spot. Lens designers use special lenses called achromatic lenses to fix this.

The speed of a wave in a material is related to its refractive index. The refractive index usually changes depending on the light's frequency (or wavelength). For most clear materials like glass, the refractive index is higher for blue light (shorter wavelength) and lower for red light (longer wavelength). This means blue light bends more than red light. This is called normal dispersion.

When light enters a material from air, Snell's law explains how it bends. Because blue light bends more, it separates from red light, creating the colorful spectrum we see from a prism.

Group-Velocity Dispersion

This animation shows how a short pulse of light changes in a dispersive material. Longer wavelengths travel faster, causing the pulse to spread out and "chirp."

Beyond just how fast individual colors travel, group-velocity dispersion (GVD) is about how a whole "pulse" of light spreads out. Imagine a short flash of light. This flash is made up of many different frequencies (colors) traveling together. The group velocity is the speed at which the overall pulse, or the information it carries, travels.

When GVD is present, different frequencies within the pulse travel at different speeds. This causes the pulse to spread out over time. If shorter wavelengths travel slower than longer ones, the pulse becomes "positively chirped." This means its frequency increases over time. If shorter wavelengths travel faster, it's "negatively chirped," and its frequency decreases over time.

GVD is very important in optical fiber communication. If pulses spread too much, they can overlap and make the signal unclear. To prevent this, engineers use techniques to manage dispersion, like using special fibers or devices that cancel out the spreading effect.

Dispersion Control

Controlling dispersion is vital in modern optical fiber communication systems. If light pulses spread out too much, the information they carry can get mixed up, making it impossible to understand the signal. This limits how far a signal can travel without needing to be boosted or regenerated.

One way to deal with this is to send signals at a specific wavelength where the fiber has very little dispersion. However, this can sometimes cause other problems. Another solution is to use soliton pulses, which are special light pulses that can maintain their shape due to a balance between dispersion and other optical effects.

The most common method is called dispersion compensation. This involves using different types of fiber or special devices that have the opposite dispersion effect. So, if one part of the fiber causes a pulse to spread in one way, another part will squeeze it back together, canceling out the spreading.

Dispersion control is also important in lasers that produce very short flashes of light (called ultrashort pulses). The way light behaves inside the laser affects the length of these pulses. Scientists use pairs of prisms or special chirped mirrors to control the dispersion inside the laser, helping it create extremely short and powerful light flashes.

Dispersion in Waveguides

Waveguides are structures that guide waves, like pipes for light. They are very dispersive because of their shape, not just the material they are made of. Optical fibers are a type of waveguide used for light in telecommunications. The speed at which data can be sent through a fiber is limited by how much the light pulses spread out due to dispersion.

Even in single-mode fibers (which carry light in a single path), pulses can spread due to polarization mode dispersion. This happens because light can vibrate in two different directions, and these directions might travel at slightly different speeds. However, this is different from chromatic dispersion because it doesn't depend on the light's wavelength or color.

Dispersion in Gemology

In gemology (the study of gemstones), "dispersion" describes how much a gemstone splits white light into its colors. This is often called "fire" by jewelers. A diamond, for example, is known for its strong fire, meaning it disperses light a lot.

Dispersion is a property of the material itself. But how much "fire" you actually see in a gemstone depends on many things. These include how the gemstone is cut, how well it's polished, the lighting, and even the color of the gemstone itself.

Dispersion in Imaging

In camera lenses and microscopes, dispersion causes a problem called chromatic aberration. This means that different colors of light don't focus at exactly the same point, making the image look blurry or have colored fringes.

To fix this, lens makers use special lenses called achromats. These lenses are made from several pieces of glass with different dispersion properties. They are designed so that the color errors from one piece of glass cancel out the errors from another, resulting in a much clearer image.

Pulsar Emissions

Pulsars are super dense, spinning stars that send out regular flashes of radio waves. Astronomers believe these flashes are sent out at all frequencies at the same time. However, when we receive them on Earth, the higher-frequency flashes arrive before the lower-frequency ones.

This happens because of the space between the pulsar and Earth, which contains tiny charged particles, mostly electrons. These electrons make the radio waves travel at different speeds depending on their frequency. The more electrons there are along the path, the more the signal gets spread out.

Scientists can measure this "delay" between different frequencies to figure out how many electrons are in the space between stars. This helps them study the interstellar medium (the stuff between stars) and combine observations from pulsars at different radio frequencies.

Images for kids

•

  In a dispersive prism, material dispersion (a wavelength-dependent refractive index) causes different colors to refract at different angles, splitting white light into a spectrum.

•

  A compact fluorescent lamp seen through an Amici prism

•

  The variation of refractive index vs. vacuum wavelength for various glasses. The wavelengths of visible light are shaded in grey.

•

  Influences of selected glass component additions on the mean dispersion of a specific base glass (n_F valid for λ = 486 nm (blue), n_C valid for λ = 656 nm (red))

•

  Time evolution of a short pulse in a hypothetical dispersive medium (k = ω²) showing that the longer-wavelength components travel faster than the shorter-wavelength components (positive GVD), resulting in chirping and pulse broadening.
